Electronics - Breadboard multimeter adapter

For some time now I've been looking for a convenient way to probe around my breadboard with my multimeter. It can be a little tricky, because the probes are too thick to get into the little holes on the breadboard.


I had a bit of an idea today.

I came up with this...

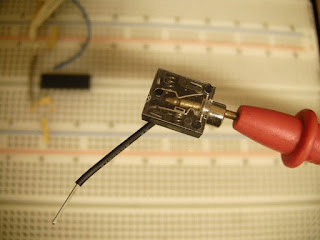

It's a stereo headphone jack with a long length of header pin (sturdy wire used as a plug) soldered to the legs.

I added some insulation in the form of heatshrink, and...

TaDah!

The 120 Things in 20 years multimeter breadboard adapter.




Posted by
Labels: , , ,

1 comment:

  1. Geek2NurseFebruary 19, 2013 at 6:06 PM

    Or you could the little spring-clamp hook tips that are meant to clip around tiny wires on breadboards that you want to test. ;) They're nice because they clip on instead of having to be held, or you can clip them onto a bit of wire and stick them in a breadboard hole.

    Some of them snap on to the existing probe tips, or you can get a different set of leads that has them instead of probes.
